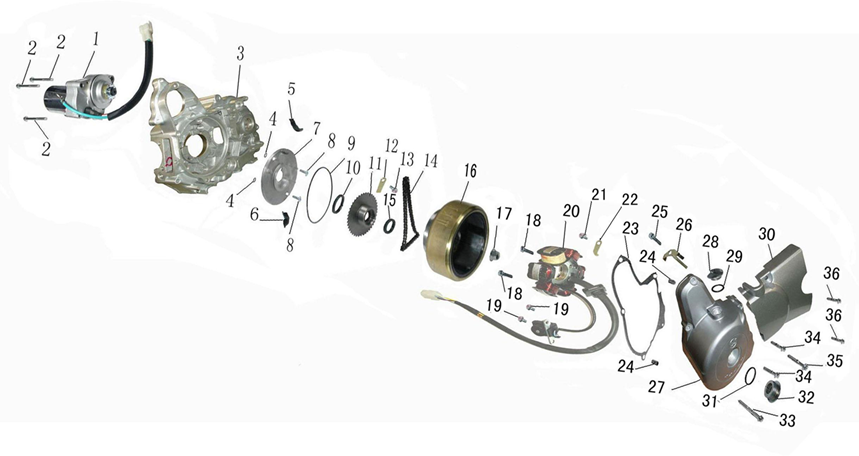

Engine Z110

1 1 1095000-005-0000 Starter motor $2.46

2 2 Q/HSQ 5787-2003 Bolt M6 $9.57

3 3 1010023-005-0000 Left crankcase combination $0.10

4 4 1150039-005-0002 O-ring seal $14.23

5 5 1000000-005-0000 Starting chain guide plate $0.03

6 6 1040016-005-0000 Start chain tensioner $0.12

7 7 1010003-005-0000 Grease trap $0.14

8 8 GB/T819.1-2000 Cross recessed countersunk head screws M6 $1.04

9 9 1150039-005-0001 O-ring seal $0.04

10 10 1010004-005-0000 Oil seal TC30 42 4.5 $0.21

11 11 1092000-005-0000 Big sprocket $0.16

12 12 1150044-005-0000 Gear plate $1.63

13 13 GB/T 5783-2000 Hexagon bolt M6 $0.03

14 14 1093000-005-0000 Starting chain, 62 knots $0.03

15 15 1090018-005-0000 Oil seal TC18.9 30 5 $0.62

16 16 1111100-005-0001 Magneto rotor $0.16

17 17 1150010-005-0000 Magneto nut $6.73

18 18 Q/HSQ 5787-2003 Bolt M6 $0.13

19 19 Q/HSQ 5787-2003 Bolt M5 $0.05

20 20 1111200-005-0001 Magneto stator $0.04

21 21 GB/T 5783-2000 Hex bolt M5 $6.47

22 22 1150045-005-0000 Trigger coil clamp $0.03

23 23 1010038-005-0001 Left crankcase gasket $0.06

24 24 1150036-005-0004 Positioning pin $0.13

25 25 Q/HSQ5787-2003 Bolt M6 $0.03

26 26 1150046-005-0000 Magneto clamp $0.03

27 27 1010049-005-0002 Left front cover $0.08

28 28 1010046-005-0000 Sight hole cover B $5.43

29 29 1150039-005-000 O-ring $0.26

30 30 1010050-005-0004 Left rear cover $0.08

31 31 1150039-005-0005 O-ring seal $2.20

32 32 1010047-005-0000 Sight hole cover A $0.05

33 33 Q/HSQ 5787-2003 Bolt M6 $0.36

34 34 Q/HSQ 5787-2003 Bolt M6 $0.12

35 35 Q/HSQ 5787-2003 Bolt M6 $0.09

36 36 Q/HSQ 5787-2003 Bolt M6 $0.10
