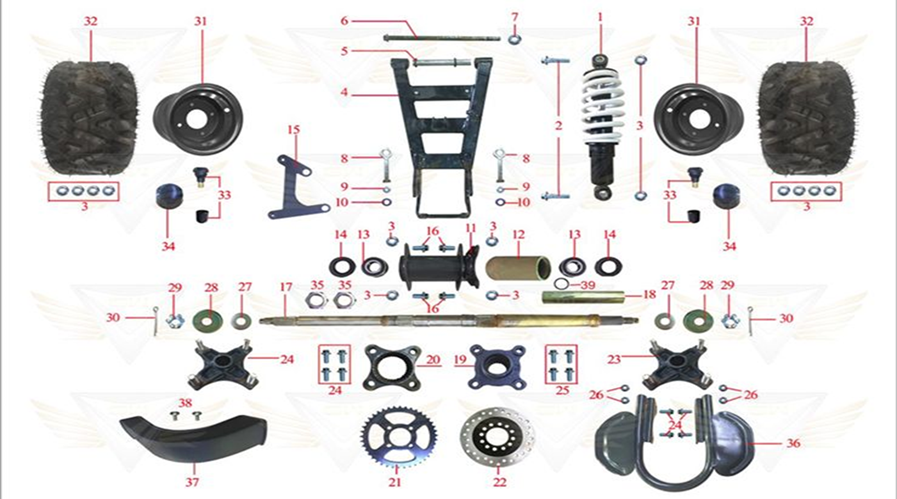

Rear Suspension

#Ref Part Price Qty

1 1 13501020020 Rear shock(white) $10.69

2 2 01254100401 Hex Flange Bolt $0.12

3 3 04522100021 Hex Flange Locking $0.04

4 4 13508140000 Rear fork $8.59

5 5 13508140010 Housing for rear fork $3.89

6 6 01254122501 Hex Flange Bolt $0.85

7 7 04522120021 Hex Flange Locking $0.09

8 8 13501140100 Chain tightener $0.18

9 9 04212080021 Hex nut $0.14

10 10 04112080021 Nut hex-flange $0.03

11 11 13501140210 Rear axle housing $3.33

12 12 13501140220 Inner tubes $3.89

13 13 09560006006 Bearing $0.90

14 14 11010035588 Seal $0.16

15 15 10801140280 Protection plate for chain $0.39

16 16 01264100301 Hex Flange Bolt $0.09

17 17 13501140000 Rear axle $12.88

18 18 13501140440 Protection tube for rear axle $2.95

19 19 13503050000 Spline cover for rear disc brake disc $1.94

20 20 13503060000 Spline cover for sprocket $2.67

21 21 13503010000 Sprocket $3.12

22 22 13506010030 Rear brake disc $3.28

23 23 13501040000 Rear hub $7.73

24 24 01214080201 Hex Flange Bolt $0.04

25 25 01214080141 Hex Flange Bolt $0.03

26 26 04512080021 Hex Flange Locking $0.03

27 27 06219163601 Flat washer $0.01

28 28 10805030170 Dust cover $0.18

29 29 04722160021 Castle nut $0.31

30 30 05011300251 Cotter pin $0.01

31 31 13505030010 Rim $5.59

32 32 13505040150 Tyre $19.45

33 33 10805030050 Air vavle $0.13

34 34 10805030020 Dust cover $0.21

35 35 04212270022 Hex nut $0.15

36 36 13501140110 Bottom cover for chain $0.37

37 37 10810180000 Chain cover $0.79

38 38 03114060141 Phillips head screw $0.02

39 39 11020002620 O-ring $0.05
